Airloy® X56 Strong Transparent Aerogel Discs

$120.00

Airloy® X50 series materials from Aerogel Technologies are mechanically robust aerogels that offer the look and transparency of classic aerogel without the fragility. Airloy X56 is semi-transparent and superinsulating without the fragility of classic silica aerogels. Around five times lighter than plastics. Use for applications such as fenestration, process visualization, and lightweight structures. Dust-free. Easy to machine and adhere. Thermal conductivity between classic silica aerogels and Styrofoam®. Maximum operating temperature is ~80°C. Size is approximately 2″ diameter x 0.2″ thick (5 cm x 0.5 cm).

Download the material SDS here.

For operating temperatures up to 150°C, choose Airloy X116 or hydrophobic Airloy H116, or Airloy HR Sheet for temperatures up to 300°C.

Airloy X56 reference properties are listed below:

Density Class Density Compressive Yield Strengtha Compressive Modulusa Ultimate Strengtha Thermal Conductivitya Transparancy Rating (0-9)b
MH 0.3 ± 0.05 g/cc 0.65 MPa 20 MPa 170 MPa 23 mW/m-K 7

aApproximate values. For reference only.

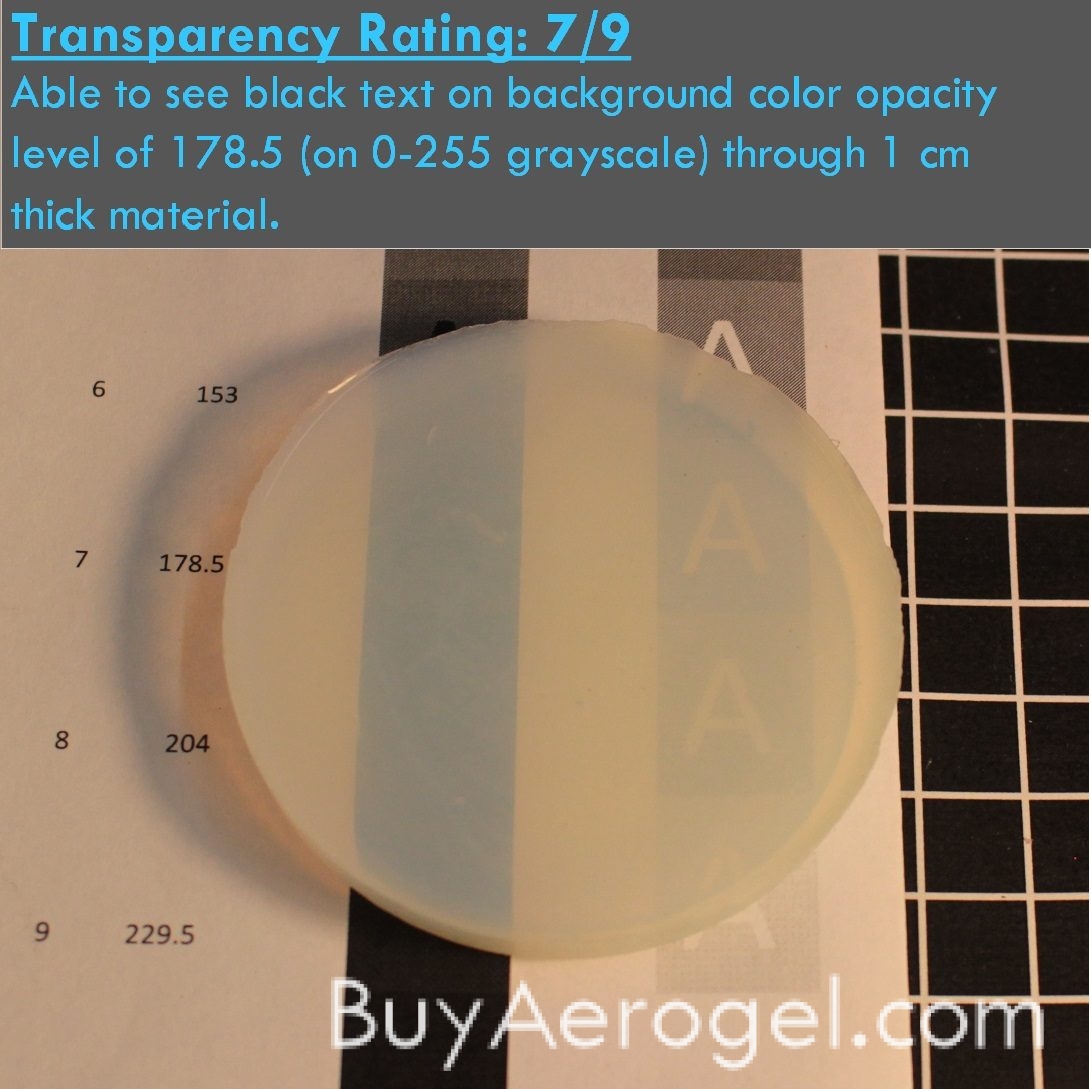

bTransparency graded on 0-9 scale, 9 being most transparent. Number is determined using black text on gray background with background color value increasing linearly from 0-255 (see image above).

Additional densities and sizes coming soon and available by request.

Quantity discounts available:

1-2 3-9 10-19 20-25 26+
$90 $85.50 $81 $76.50 $72

Please see our patent and trademark information page for information for patents protecting this product.

SKU: P-AT.A.X56 | Categories: , | Tags: , , , , | Brand:

Product Description

Airloy® X50 series materials from Aerogel Technologies are mechanically robust aerogels that offer the look and transparency of classic aerogel without the fragility. Airloy X56 is semi-transparent and superinsulating without the fragility of classic silica aerogels. Around five times lighter than plastics. Use for applications such as fenestration, process visualization, and lightweight structures. Dust-free. Easy to machine and adhere. Thermal conductivity between classic silica aerogels and Styrofoam®. Maximum operating temperature is ~80°C. Size is approximately 2″ diameter x 0.2″ thick (5 cm x 0.5 cm).

Download the material SDS here.

For operating temperatures up to 150°C, choose Airloy X116 or hydrophobic Airloy H116, or Airloy HR Sheet for temperatures up to 300°C.

Airloy X56 reference properties are listed below:

Density Class Density Compressive Yield Strengtha Compressive Modulusa Ultimate Strengtha Thermal Conductivitya Transparancy Rating (0-9)b
MH 0.3 ± 0.05 g/cc 0.65 MPa 20 MPa 170 MPa 23 mW/m-K 7

aApproximate values. For reference only.
bTransparency graded on 0-9 scale, 9 being most transparent. Number is determined using black text on gray background with background color value increasing linearly from 0-255 (see image above).

Additional densities and sizes coming soon and available by request.

Quantity discounts available:

1-2 3-9 10-19 20-25 26+
$90 $85.50 $81 $76.50 $72

Please see our patent and trademark information page for information for patents protecting this product.

Additional Information

Weight 2 oz
Dimensions 3 × 4 in
