Airloy® X116 Non-Flammable Strong Aerogel Large Panels

$490.00

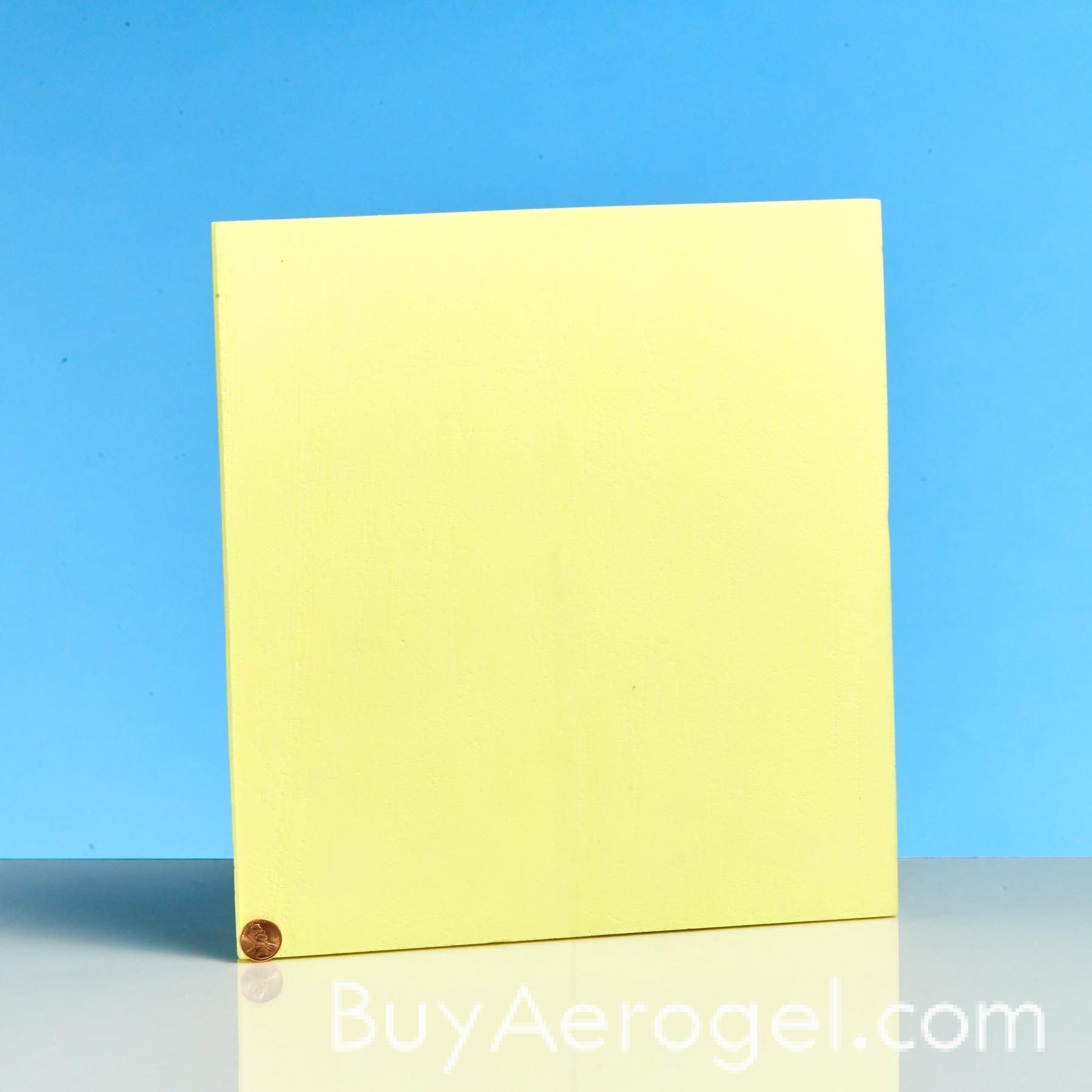

Airloy® X110 series materials from Aerogel Technologies are the world’s first commercially available polyimide aerogels. Airloy X116 materials are mechanically robust aerogels with the strength to stand up to real-world applications. Now available in large panels (30 cm x 30 cm x 0.5 cm), Airloy X116 comes in densities up to fifteen times lighter than plastics and is a great alternative to Airloy X103 where higher temperatures are required. Does not burn, smoke, or drip upon exposure to flame. Designed for aviation and automotive applications. Dust-free. Machinable and adherable. Thermally superinsulating with a conductivity between classic silica aerogels and Styrofoam®. Maximum operating temperature is ~150°C. Color is yellow. Note Airloy X116 will undergo a one-time volume reduction upon exposure to temperatures above about 100°C and so part annealing is suggested. Made with NASA technology.

Download the material SDS here.

Airloy X116 Tiles are also available for smaller projects and low-cost materials evaluation.

Airloy X116 reference properties are listed below:

Density Class Density Compressive Strengtha Compressive Modulusa Operating Temperaturea Thermal Conductivitya
L 0.09 ± 0.02 g/cc 0.4 MPa 11 MPa 400°C 29 mW/m-K

aApproximate values. For reference only.

Additional densities and sizes coming soon and available by request.

Quantity discounts available:

1-2 3-9 10-19 20-25 26+
$490 $450 $420 $400 $390

Please see our patent and trademark information page for information for patents protecting this product.

SKU: P-AT.A.X116 | Category: | Tags: , , , , | Brand:

Product Description

Airloy® X110 series materials from Aerogel Technologies are the world’s first commercially available polyimide aerogels. Airloy X116 materials are mechanically robust aerogels with the strength to stand up to real-world applications. Now available in large panels (30 cm x 30 cm x 0.5 cm), Airloy X116 comes in densities up to fifteen times lighter than plastics and is a great alternative to Airloy X103 where higher temperatures are required. Does not burn, smoke, or drip upon exposure to flame. Designed for aviation and automotive applications. Dust-free. Machinable and adherable. Thermally superinsulating with a conductivity between classic silica aerogels and Styrofoam®. Maximum operating temperature is ~150°C. Color is yellow. Note Airloy X116 will undergo a one-time volume reduction upon exposure to temperatures above about 100°C and so part annealing is suggested. Made with NASA technology.

Download the material SDS here.

Airloy X116 Tiles are also available for smaller projects and low-cost materials evaluation.

Airloy X116 reference properties are listed below:

Density Class Density Compressive Strengtha Compressive Modulusa Operating Temperaturea Thermal Conductivitya
L 0.09 ± 0.02 g/cc 0.4 MPa 11 MPa 400°C 29 mW/m-K

aApproximate values. For reference only.

Additional densities and sizes coming soon and available by request.

Quantity discounts available:

1-2 3-9 10-19 20-25 26+
$490 $450 $420 $400 $390

Please see our patent and trademark information page for information for patents protecting this product.

Additional Information

Weight 2 oz
Dimensions 12 × 12 in
