Airloy® H116 Hydrophobic Non-Flammable Strong Aerogel Tiles
$120.00

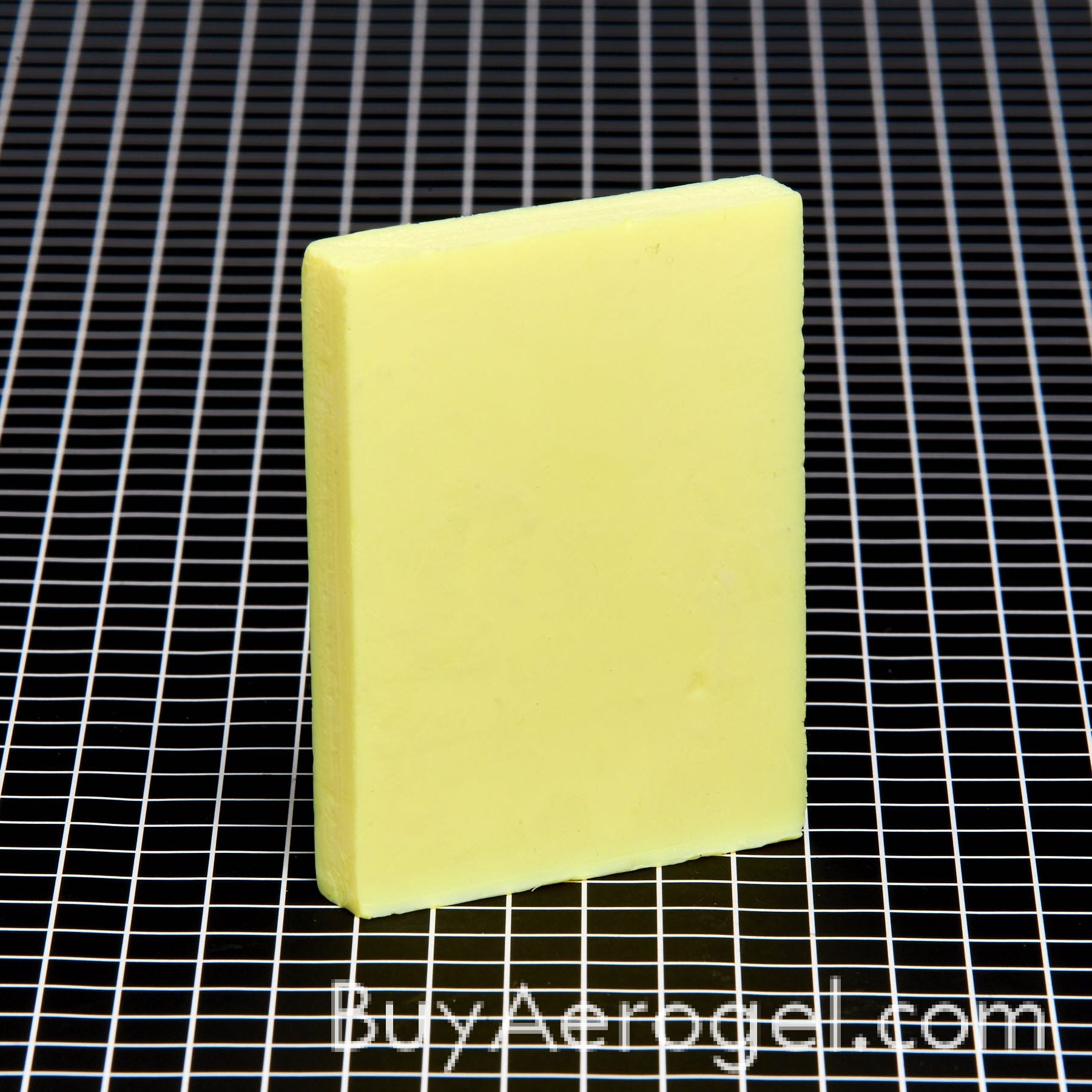

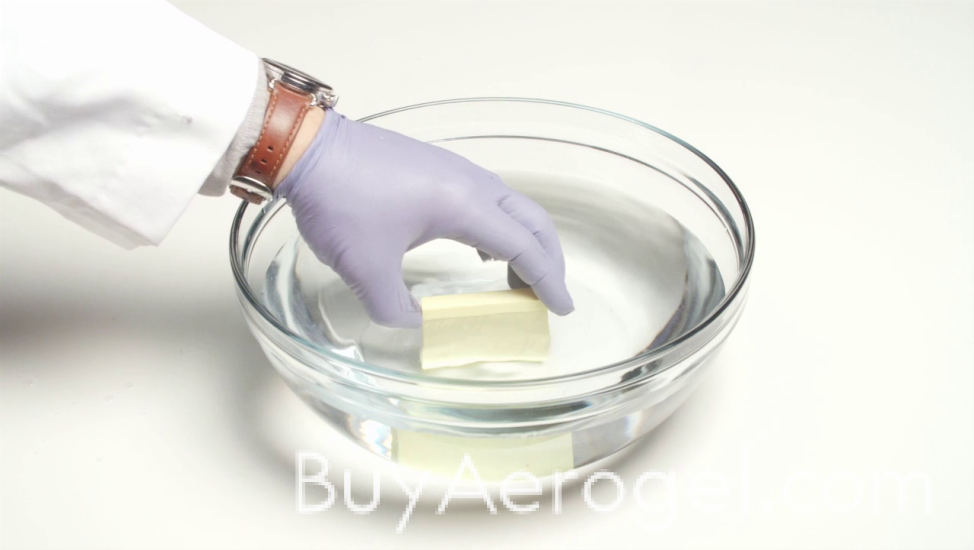

Airloy® H116 from Aerogel Technologies is a mechanically durable, dust-free, nonflammable hydrophobic polyimide aerogel formulated to withstand exposure to liquid water. Airloy H116 comes in densities up to 10 times lighter than plastics and is a great alternative to Airloy X103 where higher temperatures are required and/or where water may be present. Unlike most polyimides, Airloy H116 absorbs less than only 15 wt % water when submerged for 24 h and reversibly dries out, yet is halogen-free and dust-free. Does not burn, smoke, or drip upon exposure to flame. Ideal for aviation and automotive applications. Machinable and adherable. Thermally superinsulating with a conductivity between classic silica aerogels and Styrofoam®. Maximum operating temperature ~150°C. Color is yellow. Dimensions are approximately 2.5″ x 3″ x 0.4″ (5 cm x 7.5 cm x 1 cm). Note Airloy H116 will undergo a one-time volume reduction upon exposure to temperatures above about 100°C and so part annealing is suggested prior to use. Made with NASA technology.
Download the material SDS here.
Large Airloy X116 panels are available for larger engineering parts (Large Airloy H116 panels coming soon).
Airloy H116 reference properties are listed below.
| Density Class | Density | Compressive Strengtha | Compressive Modulusa | Sustained Operating Temperaturea | Thermal Conductivitya |
| LM | 0.14 ± 0.02 g/cc | 1 MPa | 39 MPa | 150°C | 24 mW/m-K |
aApproximate values. For reference only.
Additional densities and sizes coming soon and available by request. Quantity discounts available:
| 1-2 | 3-9 | 10-19 | 20-25 | 26+ |
| $120 | $114 | $108 | $102 | $96 |
Please see our patent and trademark information page for information for patents protecting this product.
Product Description
Airloy® H116 from Aerogel Technologies is a mechanically durable, dust-free, nonflammable hydrophobic polyimide aerogel formulated to withstand exposure to liquid water. Airloy H116 comes in densities up to 10 times lighter than plastics and is a great alternative to Airloy X103 where higher temperatures are required and/or where water may be present. Unlike most polyimides, Airloy H116 absorbs less than only 15 wt % water when submerged for 24 h and reversibly dries out, yet is halogen-free and dust-free. Does not burn, smoke, or drip upon exposure to flame. Ideal for aviation and automotive applications. Machinable and adherable. Thermally superinsulating with a conductivity between classic silica aerogels and Styrofoam®. Maximum operating temperature ~150°C. Color is yellow. Dimensions are approximately 2.5″ x 3″ x 0.4″ (5 cm x 7.5 cm x 1 cm). Note Airloy H116 will undergo a one-time volume reduction upon exposure to temperatures above about 100°C and so part annealing is suggested prior to use. Made with NASA technology.
Download the material SDS here.
Large Airloy X116 panels are available for larger engineering parts (Large Airloy H116 panels coming soon).
Airloy H116 reference properties are listed below.
| Density Class | Density | Compressive Strengtha | Compressive Modulusa | Sustained Operating Temperaturea | Thermal Conductivitya |
| LM | 0.14 ± 0.02 g/cc | 1 MPa | 39 MPa | 150°C | 24 mW/m-K |
aApproximate values. For reference only.
Additional densities and sizes coming soon and available by request. Quantity discounts available:
| 1-2 | 3-9 | 10-19 | 20-25 | 26+ |
| $120 | $114 | $108 | $102 | $96 |
Please see our patent and trademark information page for information for patents protecting this product.
Additional Information
| Weight | 2 oz |
|---|---|
| Dimensions | 3 × 4 in |
